How structural design determines whether a retaining wall lasts

Talk to McGuire Landscape Company about retaining wall engineering on your site before problems develop.

A retaining wall is not a fence. It is a structure holding back a mass of soil, rock, or fill that would otherwise move downhill under its own weight. The moment a site has a meaningful change in elevation, the ground exerts lateral earth pressure against whatever is holding it back, and that pressure must be calculated, not guessed.

Retaining wall engineering combines geotechnical and structural processes: soil mechanics determines how soil weight, internal friction, and moisture conditions influence lateral pressure, while structural design determines how the wall resists those forces to avoid sliding, rotation, or foundation settlement. Both disciplines have to work together. A wall built without that coordination may stand for a season or two before the forces it was never designed to handle catch up with it.

For homeowners on sloped or lakefront properties in southeastern Wisconsin, this is not an abstract concern. Grade changes are common, soils vary, and freeze-thaw cycles add stress that flat-climate engineering assumptions do not account for.

Three categories of force act against a retaining wall, and each must be accounted for in the design.

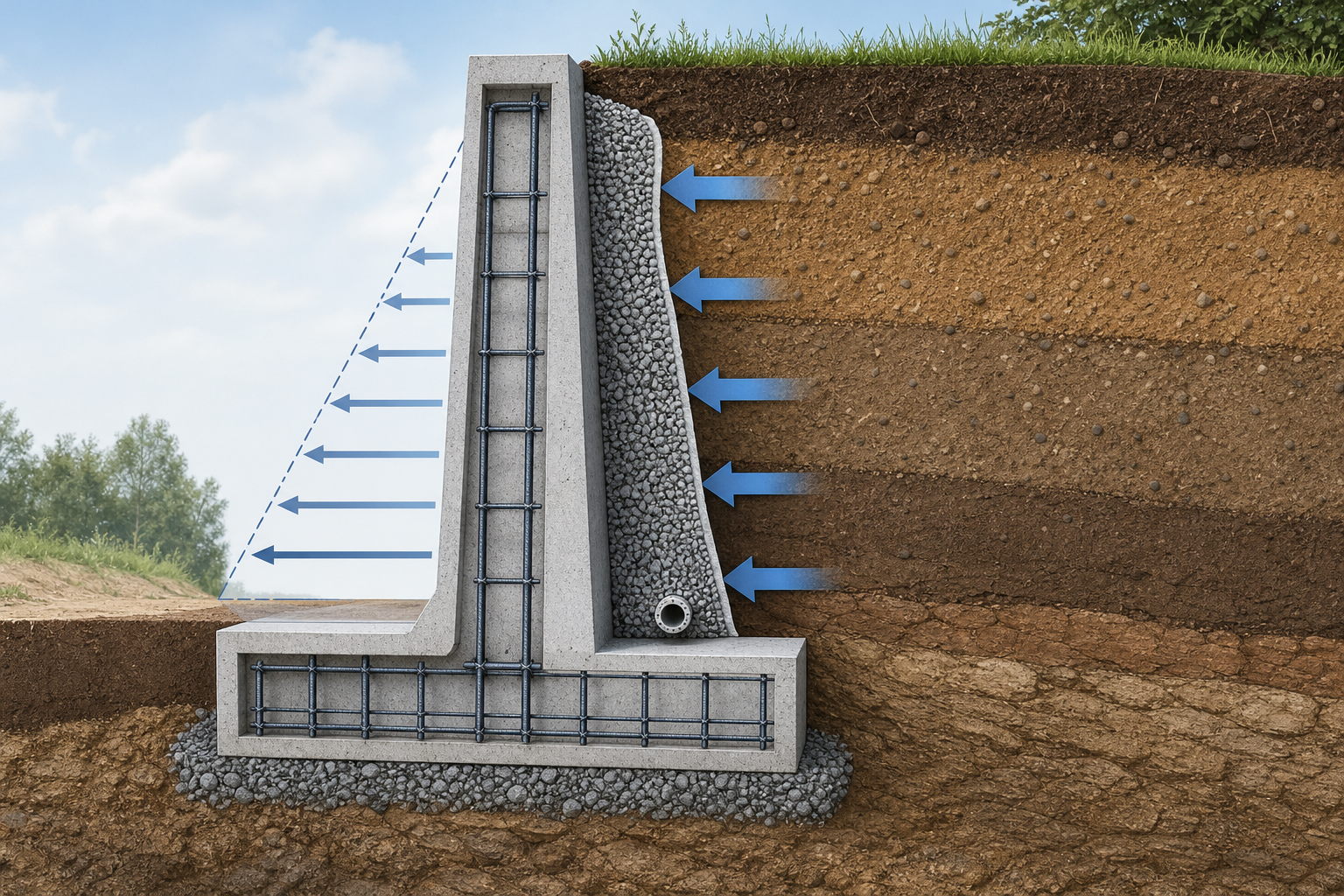

Active earth pressure is the primary force: the lateral push of the retained soil mass. Its distribution is generally triangular, meaning pressure increases with depth, so a taller wall faces disproportionately greater demand at its base than at its top.

Surcharge loads add to that baseline. A driveway, patio, or structure sitting above the retained soil transfers additional vertical load into the soil, which converts directly into more lateral pressure against the wall. Under the International Building Code, a wall retaining 4 feet or more of soil requires an engineer's stamp, and that threshold drops to just 2 feet when a surcharge load is present.

Hydrostatic pressure is the force most often underestimated. Water buildup behind a wall dramatically increases lateral load because saturated soil exerts both active earth pressure and the full pressure of the water column itself. This is why drainage is not an accessory detail in retaining wall design. It is a load-reduction strategy. See also how erosion control principles overlap with retaining wall drainage planning.

Wall type selection follows directly from soil conditions, retained height, available space, and the consequences of failure. There is no universal best choice.

Gravity walls rely entirely on their own mass to resist lateral pressure. They are appropriate for lower retained heights, typically limited to a few metres, and use stone, concrete, or masonry. No anchors or reinforcement extend into the soil, so the geometry itself must provide enough weight.

Cantilever walls add a base slab that allows the weight of the retained soil to contribute to stability, making them more material-efficient. They are economical up to approximately 10 metres in height and are the most common choice for medium-height walls in residential and civil construction, with retained heights from roughly 1.5 to 6 metres well within their range.

Anchored walls use cables or rods driven into the soil or rock behind the wall to provide tension resistance. They are used when space is limited, soils are loose, or wall heights exceed what cantilever geometry can handle efficiently. Properly designed anchors can support walls exceeding 50 feet, making them suitable for roadway cuts and waterfront bulkheads.

Mechanically stabilized earth (MSE) systems use layers of geosynthetic reinforcement woven into the retained soil mass itself, turning the backfill into a composite structure. This approach suits large-scale fills and is common behind segmental block walls on residential sites.

Drainage behind a retaining wall is not a finishing touch. It is a structural requirement that directly reduces the lateral load the wall must resist. When water cannot escape from the retained soil, hydrostatic pressure builds and can multiply the effective force against the wall by a factor that overwhelms the original design assumptions.

Proper drainage typically involves a granular drainage aggregate placed directly behind the wall face, perforated pipe at the base of the wall to carry water away, and weep holes or outlets that allow water to exit before pressure accumulates. On sites with heavy clay soils, which are common in parts of Washington, Waukesha, and Ozaukee Counties, drainage design demands particular attention because clay holds water rather than shedding it.

For lakefront properties, the drainage equation is more complex: groundwater levels fluctuate seasonally, and the wall may face hydrostatic pressure from both sides depending on its position relative to the water table. This is one reason shoreline retaining structures require site-specific geotechnical investigation rather than standard residential assumptions. Homeowners planning a backyard renovation on a sloped site should treat drainage planning as part of the wall design, not a separate afterthought.

The visible face of a retaining wall is only part of the structure. What sits below grade, the embedment depth and the bearing conditions of the foundation soil, determines whether the wall remains stable over years of seasonal loading.

Embedment depth is the portion of the wall buried below the finished grade on the low side. Insufficient embedment allows the base of the wall to kick out under lateral load, a failure mode that can develop gradually and is often mistaken for settling. Adequate embedment also protects against frost heave in Wisconsin's climate, where freeze-thaw cycles exert significant uplift forces on shallow foundations.

Bearing capacity of the foundation soil must be confirmed through geotechnical investigation. A wall can be correctly designed for lateral loads and still fail if the soil beneath its footing cannot support the vertical loads transferred to it. Soft or poorly compacted subsoils are a common hidden variable on sites that have been graded or filled previously. This is why a thorough site assessment before you build is not optional on complex terrain.
